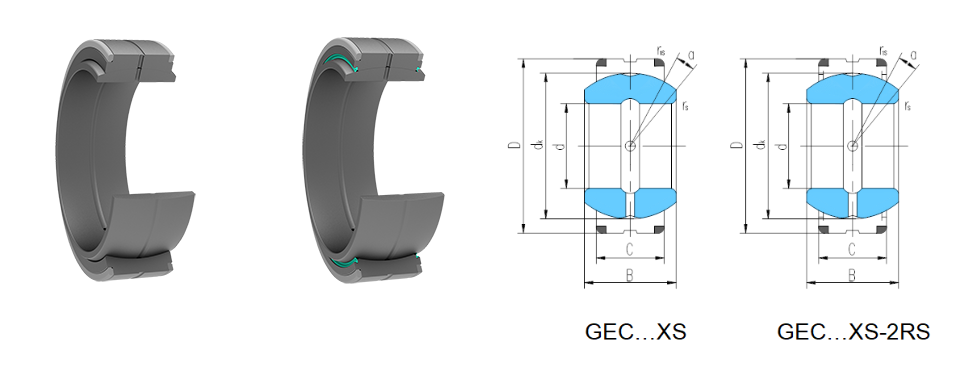

GEC..XS / GEC..XS-2RS
产品编号：GEC…XS 320～630
GEC...XS-2RS 320～630
滑动磨擦副： 钢/钢
产品特点：外圈沿轴向隔分成两半，用锁圈固定，内、外圈材料均为轴承钢，淬火，磷化，滑动表面涂敷二硫化钼，后置代号有-2RS为外圈两端带有密封圈。
使用温度范围：GEC...XS -50℃～+150℃
GEC...XS-2RS -30℃～+130℃
|
轴 承 型 号 Bearing number |
外 形 尺 寸 Dimensions mm |
额定载荷 Load ratings kN |
重 量 Weight ≈kg |
|||||||||
|
d |
D |
B |
C |
dk |
rs min |
r1s min |
α˚ ≈ |
动载荷 Dynamic |
静载荷 Static |
|||
|
GEC320XS |
GEC320XS-2RS |
320 |
440 |
160 |
135 |
380 |
1.1 |
3 |
4 |
4400 |
22000 |
78 |
|
GEC340XS |
GEC340XS-2RS |
340 |
460 |
160 |
135 |
400 |
1.1 |
3 |
3 |
4650 |
23200 |
83 |
|
GEC360XS |
GEC360XS-2RS |
360 |
480 |
160 |
135 |
420 |
1.1 |
3 |
3 |
4800 |
24000 |
87 |
|
GEC380XS |
GEC380XS-2RS |
380 |
520 |
190 |
160 |
450 |
1.5 |
4 |
4 |
6300 |
31500 |
129 |
|
GEC400XS |
GEC400XS-2RS |
400 |
540 |
190 |
160 |
470 |
1.5 |
4 |
3 |
6550 |
32500 |
135 |
|
GEC420XS |
GEC420XS-2RS |
420 |
560 |
190 |
160 |
490 |
1.5 |
4 |
3 |
6800 |
34500 |
141 |
|
GEC440XS |
GEC440XS-2RS |
440 |
600 |
218 |
185 |
520 |
1.5 |
4 |
3 |
8650 |
42300 |
196 |
|
GEC460XS |
GEC460XS-2RS |
460 |
620 |
218 |
185 |
540 |
1.5 |
4 |
3 |
9000 |
45000 |
204 |
|
GEC480XS |
GEC480XS-2RS |
480 |
650 |
230 |
195 |
565 |
2 |
5 |
3 |
9800 |
49000 |
239 |
|
GEC500XS |
GEC500XS-2RS |
500 |
670 |
230 |
195 |
585 |
2 |
5 |
3 |
10200 |
51000 |
248 |
|
GEC530XS |
GEC530XS-2RS |
530 |
710 |
243 |
205 |
620 |
2 |
5 |
3 |
11400 |
57000 |
294 |
|
GEC560XS |
GEC560XS-2RS |
560 |
750 |
258 |
215 |
655 |
2 |
5 |
4 |
12700 |
64000 |
345 |
|
GEC600XS |
GEC600XS-2RS |
600 |
800 |
272 |
230 |
700 |
2 |
5 |
3 |
14600 |
73500 |
413 |
|
GEC630XS |
GEC630XS-2RS |
630 |
850 |
300 |
260 |
740 |
3 |
6 |
3 |
17600 |
88000 |
538 |
