GEBK...S
创建时间：2025-12-23 10:19
产品编号：GEBK…S 5～30
滑动磨擦副：钢/青钢
产品特点：外圈材料为碳钢，镶有青铜衬垫；内圈材料为轴承钢，淬火，球面镀硬铬。
使用温度范围：-50℃～+150
|
轴 承 型 号 Bearing number |

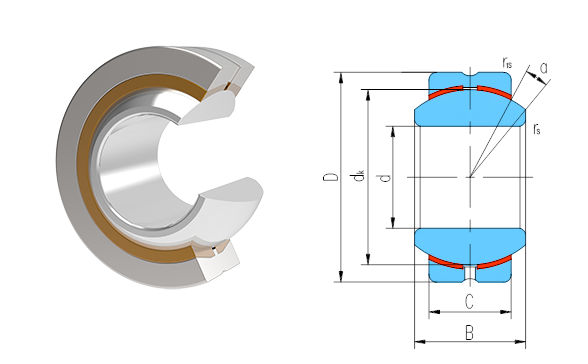

外 形 尺 寸 Dimensions mm |
额定载荷 Load ratings kN |
重 量 Weight ≈kg |
||||||||
|
d |
D |
B |
C |
dk |
rs min |
r1s min |
α˚ ≈ |
动载荷 Dynamic |
静载荷 Static |
||
|
GEBK5S |
5 |
16 |
8 |
6 |
11.112 |
0.3 |
0.3 |
13 |
3.3 |
7.8 |
0.009 |
|
GEBK6S |
6 |
18 |
9 |
6.75 |
12.7 |
0.3 |
0.3 |
13 |
4.3 |
9.8 |
0.013 |
|
GEBK8S |
8 |
22 |
12 |
9 |
15.88 |
0.3 |
0.3 |
14 |
6.8 |
16 |
0.024 |
|
GEBK10S |
10 |
26 |
14 |
10.5 |
19.05 |
0.3 |
0.6 |
14 |
10 |
23 |
0.039 |
|
GEBK12S |
12 |
30 |
16 |
12 |
22.23 |
0.3 |
0.6 |
13 |
13 |
31 |
0.058 |
|
GEBK14S |
14 |
34 |
19 |
13.5 |
25.4 |
0.3 |
0.6 |
16 |
17 |
40 |
0.084 |
|
GEBK16S |
16 |
38 |
21 |
15 |
28.58 |
0.3 |
0.6 |
15 |
21 |
50 |
0.118 |
|
GEBK18S |
18 |
42 |
23 |
16.5 |
31.75 |
0.6 |
0.6 |
15 |
26 |
61 |
0.16 |
|
GEBK20S |
20 |
46 |
25 |
18 |
34.93 |
0.6 |
0.6 |
15 |
31 |
73 |
0.21 |
|
GEBK22S |
22 |
50 |
28 |
20 |
38.1 |
0.6 |
0.6 |
15 |
38 |
88 |
0.26 |
|
GEBK25S |
25 |
56 |
31 |
22 |
42.86 |
0.6 |
0.6 |
15 |
47 |
110 |
0.39 |
|
GEBK28S |
28 |
62 |
35 |
25 |
47.63 |
0.6 |
0.6 |
15 |
59 |
138 |
0.50 |
|
GEBK30S |
30 |
66 |
37 |
25 |
50.8 |
0.6 |
0.6 |
17 |
63 |
148 |
0.61 |
